TRINA 400W BIFACIAL DUOMAX TWIN MONO
DUAL GLASS HALF CUT MONO BIFACIAL MODULES
Price does not include delivery. Please contact us for a delivery quotation and invoice.
Sold by the pallet.
Pallet quantity is: 35 panels per pallet
Please order 1 or multiple pallets as needed
Please click the link for datasheet: https://documentcloud.adobe.com/link/track?uri=urn:aaid:scds:US:8ae6b206-3577-3893-b263-771dfac2d7dd

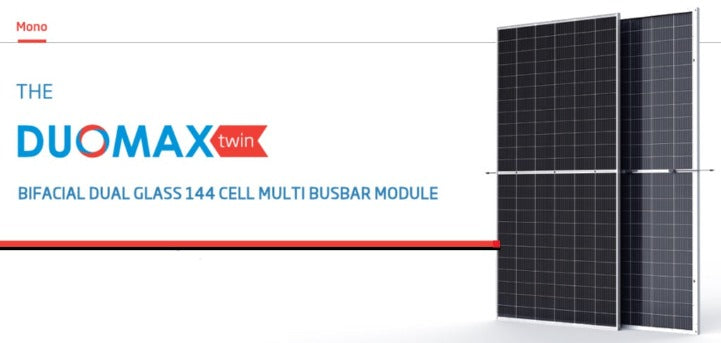

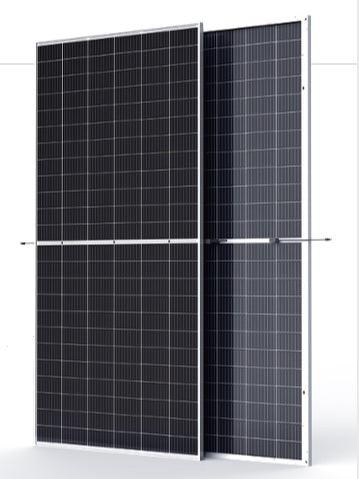

TRINA 400W BIFACIAL DUAL GLASS 144 CELL MULTI BUSBAR MODULE WITH 30mm (1.18 inches) ANODIZED ALUMINUM ALLOY FRAME
Model No.: TSM-DEG15MC.20(II)
High power output
• Up to 415W front power and 20.5% module efficiency with half-cut and MBB (Multi Busbar) technology enabling higher BOS savings
• Lower resistance of half-cut cells ensures higher power
Certified to perform in highly challenging environments
• High PID resistance through cell process and module material control• Resistant to salt, acid, sand, and ammonia
• Proven to be reliable in high temperature and humidity areas
• Certified to the best fire class A
• Minimizes micro-crack and snail trails
• Certified to 5400 Pa positive load and 2400 Pa negative load
High energy generation, low LCOE
• Up to 25% additional power gain from back side, depending on the albedo
• Excellent 3rd party validated IAM and low light performance with cell process and module material optimization
• Low temp coefficient (-0.35%) and NMOT increases energy production
• Higher power from same installation footprint as standard modules
Easy to install, wide application
- Frame design enables compatibility with standard installation methods
- Deployable for ground mounted utility, carports, and agricultural projects
- Safe and easy to transport, handle, and install like normal framed modules
Trina’s DUOMAX Warranty**
Guaranteed Power Trina Solar’s DUOMAX Performance Warranty
- 12-year Product Workmanship Warranty
- 30-year Power Warranty
- ** Back-side power gain varies depending upon the specific project albedo
